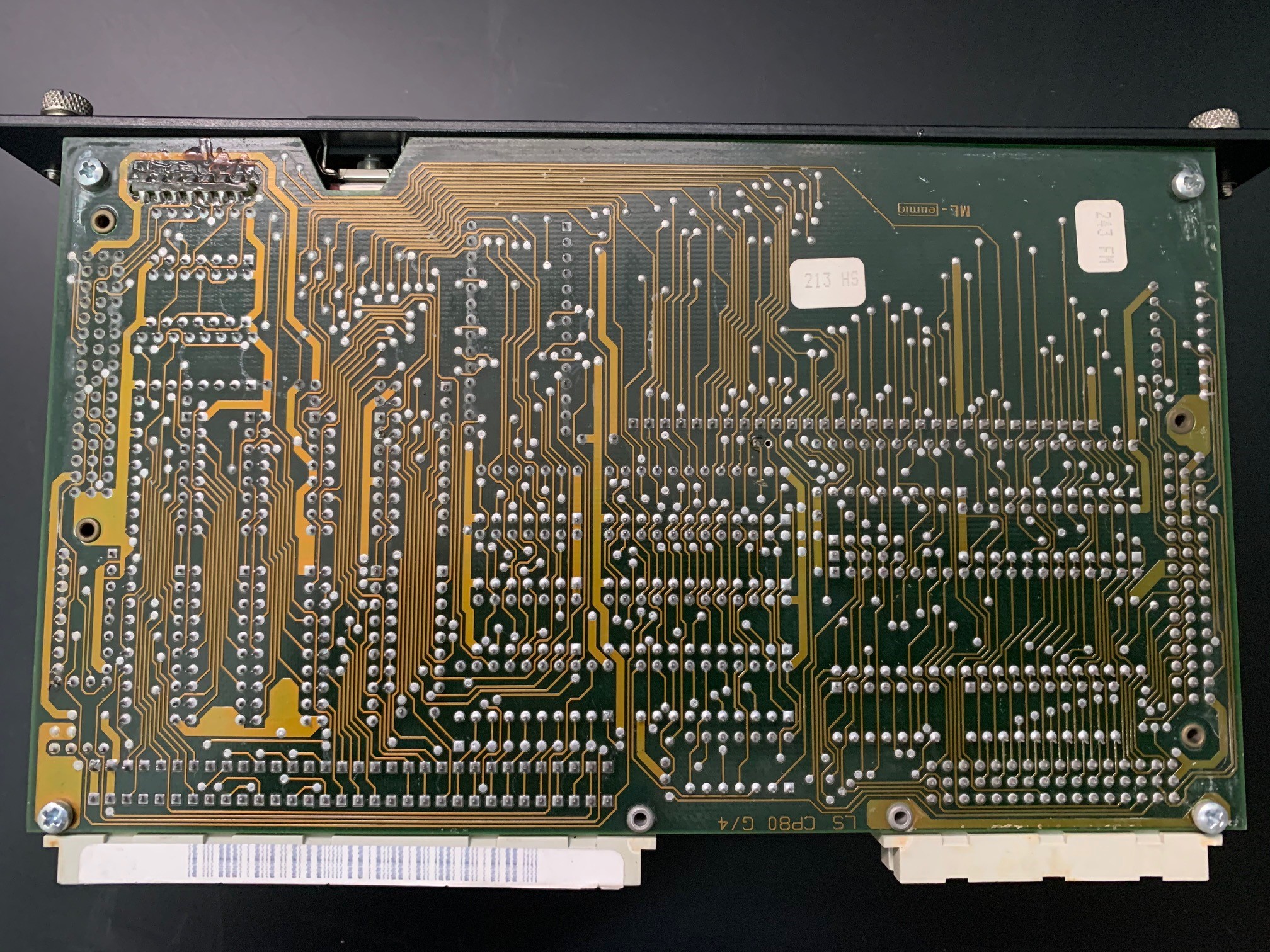

B+R MULTI control CPU ECCP60-01

Rev. no. 62.41

Technical details:

CPU-type: B
processor: MOTOROLA 6809
processing time: 2,5ms/K at 2 MHz/ 1,7ms/K at 3MHz (from revision no. 59.xx)
application program memory: 42kB RAM (or max. 42K instead) on module, PROM module not incl.
total registers: 7168/ remanent: 7148/ non-remanent: 20
Flags: 800/ remanent 300/ non-remanent 500
Expended data memory: no
reset button: yes
status display: yes/ 4 characters alphanumeric
time function: date and time, resolution 1/100 s (real-time clock)
online interface: TTY
time cycles: 1/100 s, 1/10 s, 1 s and 10 s
time pulses: 1/100 s, 1/10 s, 1 s and 10 s
software timers: 64
power consumption: at +8V…2,9W/ at +15V…2,0W
