LUST frequency converter VF1207M, PTC1

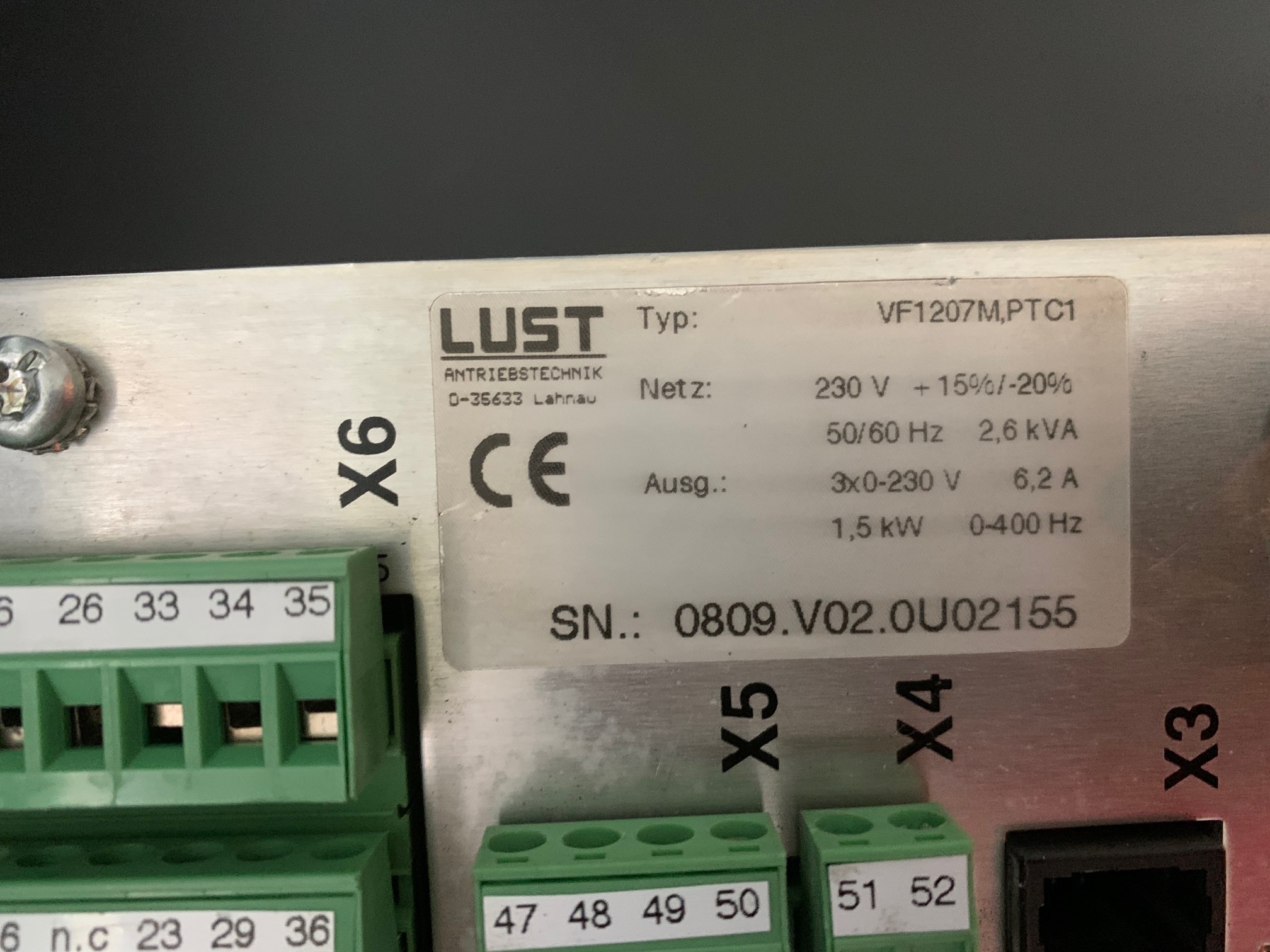

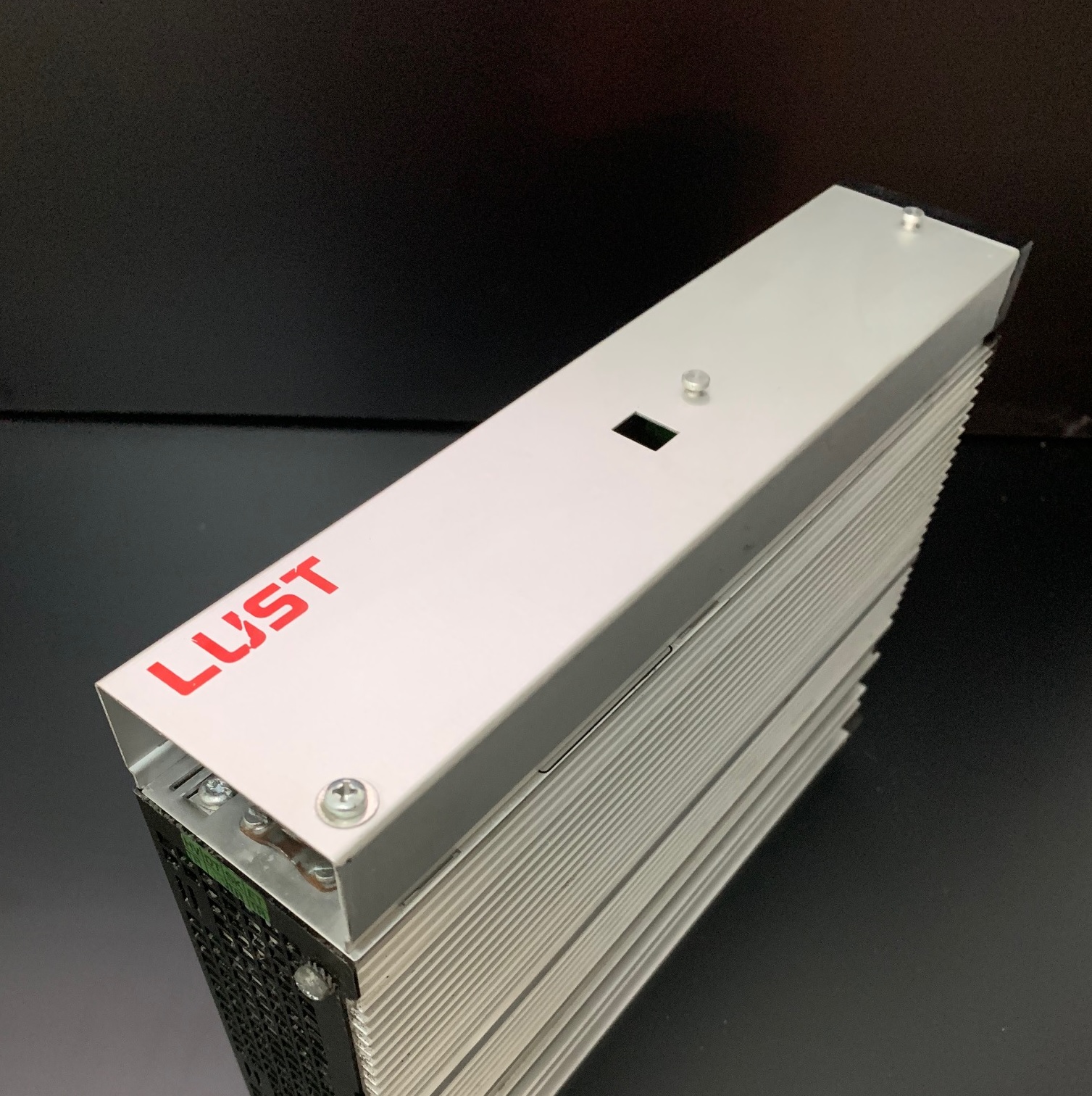

LUST frequency converter VF1207M,PTC1, used but tested part:

Technical details:
  • Output on motor side
    Power: 1,5 kW
  • Rated current (230VAC): 6,2A
  • Cont. current (230VAC): 6,8A
  • Overload current for 60s: 9,3A
  • Output voltage: 3 x 230VAC
  • Rotary field frequency: 0-400Hz
  • Short circuit proof: at the terminals
  • Input on mains side
  • Mains voltage: 1x230VAC +15%/-20%
  • Mains frequency: 50-60Hz +-10%
  • Connection diameter: 2,5 mm²
  • Recommended fusing: 16A
  • General
  • Operating mode: 2 quadrats
  • Power loss: 82W
  • Efficiency with rated voltage and rated current: 95%
  • Mechanics
  • Weight (without packing): 3,75 kg
  • Protection: IP20, VBG4, NEMA 1
  • Installation: upright wall mounting

Product Details

TypeSpare PartsElectricFrequency convertersManufacturerLUSTCategorySpare Parts

TypeElectricFrequency convertersSpare Parts
Condition | tested second hand part

Articlenumber:

13309
